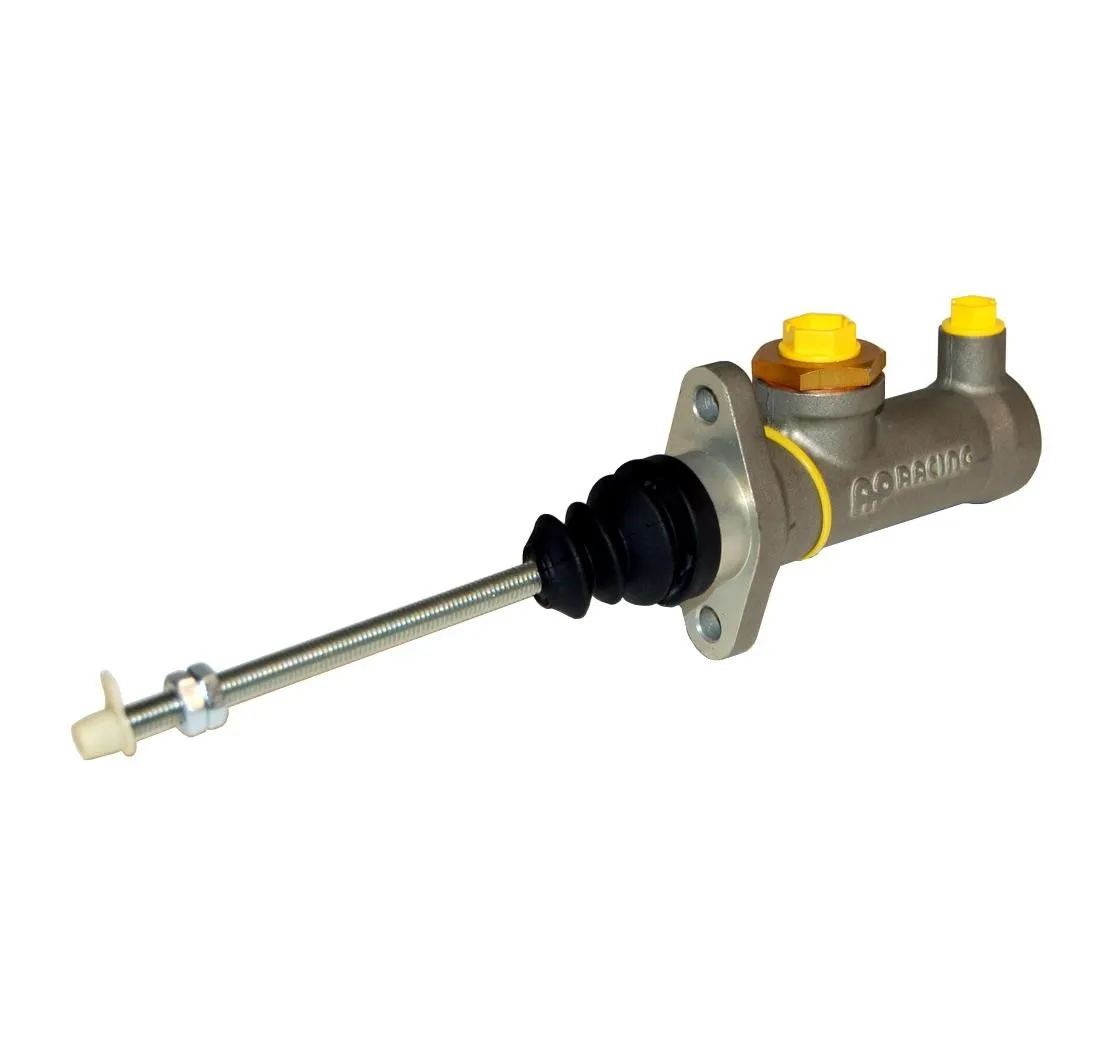

General Information: - Centre Valve configuration, helps to improve cylinder performance and seal durability.
- For use with ABS and high pressure applications.
- Forged Aluminium Alloy body.
- Flange mounted.
- Suitable for most brake and particularly clutch applications.
- Metric hydraulic threads.
- Short travel to cut-off standard.
- Choice of 8 bore sizes.
- Rubber boots fitted as standard.
Servicing Note:- For Repair Kit instruction please view P14.339 leaflet in the downloads tab.
| Weight | 0.37Kg (0.81lbs) |
| Full Stroke | 30.00mm (1.18") |
| Travel To Cut-Off | Short - 0.68 to 1.09mm - 0.27" to 0.43") |
| Inlet Hydraulic Threads | M12x1.0 |
| Outlet Hydraulic Threads | M10x1.0 |
| Push Rod Thread Available | - PRT - 5/16" UNF - PRM - M8x1.25 |
| Push Rod Length from Mounting Flange | 163mm (6.41") |
